The Architecture of the Medical College on Chakpori, Lhasa
- click on the image to enlarge | click on the Expand icon upper left to enlarge further
click Esc to close and return to this page

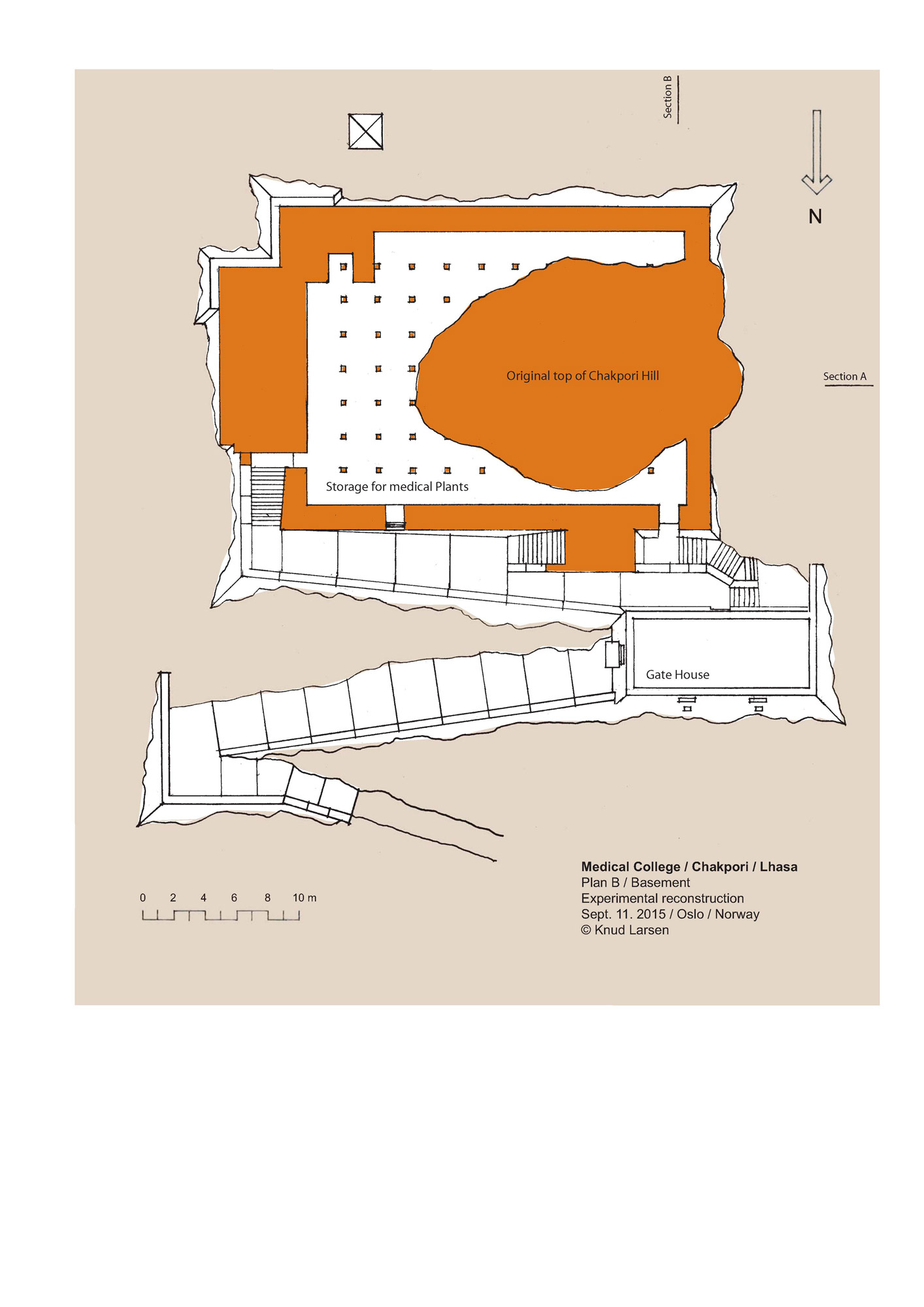

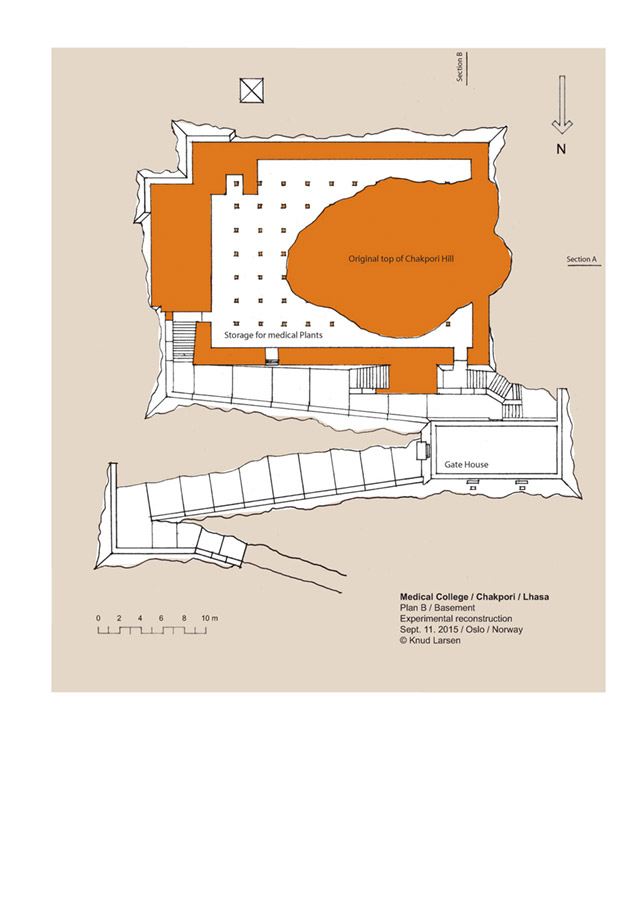

Fig. 35:
Experimental reconstruction of the Medical College on Chakpori, Lhasa
Plan B / Basement
Research and drawing by Knud Larsen
2015
This is, for the time being, the final attempt at a reconstruction. It was presented at the IATS-seminar in Bergen, Norway 2016. The top of the Chakpori Hill on which the original tower was built by Thangtong Gyalpo fills up most of the basement space. This space, which had two accesses from outside and a small window, was mainly storage for medicine plants. The main stairs of this building may have also served this level, but not necessarily. This plan shows that only the foundation for the stairs above is visible on this level.
